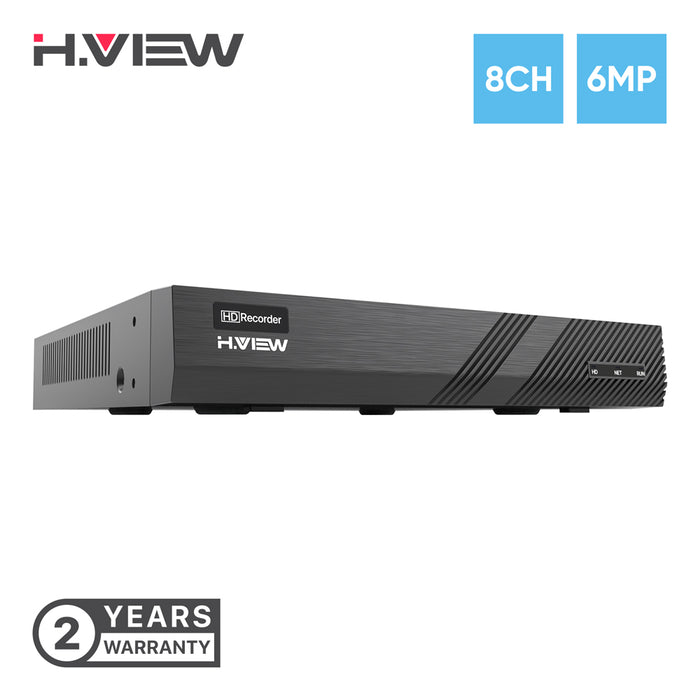

H.VIEW 6MP 8CH PoE NVR Supports 8 x 6MP IP Cameras (HDD Not Included)
- Description
- Specs
- Downloads
-
Support 6MP Ultra HD
Featuring 8CH Recording, Both Video and Audio, Playback & Live View in Up to 6MP Resolution (3072×2048) @ Real-Time 30fps.
24/7 Continuous Recording
If you want 24/7 video recording or if you have multiple IP cameras to manage, this NVR is your best choice.
· Support all cameras recording at the same time (up to 8 cameras).
· If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.HEVC / H.265 Encoding
In comparison toH.264, H.265 saves 50% hard drive space under same resolution, can also offerssame level of video quality at 50% bandwidth as H.264 need.
Remote Viewing, Anytime, from Anywhere
No matter where you are, you can remotely access the NVR to see live streaming and stay connected.
Motion Detection-Rich Alerts
When any camera detects motion, it can also email and push you and trigger the recording. In this way, you can get real-time notification when an intrusion occurs.
Set Motion Detection Schedule for NVR
The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.
Compatible with all H.VIEW IP Cameras & Majority of POE Cameras
This NVR Can work with all H.VIEW POE Cameras. Completely Plug and Play. Save installation costs by installing system by yourself. It can also work with other cameras of other brands.
Simultaneous Multi-Channel Recording and Playback
Simultaneously playback 8 Channels at 1080P resolution, different colour marks different recordings
Plug-and-play installation via PoE
Power over Ethernet means the IP cameras connect to with a single cable that transmits both data and power. No power adapter is required, lower risk of electric leakage and easy to set up.
NVR Specifications
What's in the box?
-
NVR Specifications
Model NVR3108-8P Video/Audio Input IP Video Input 8-ch Network Incoming Bandwidth 50Mbps Outgoing Bandwidth 40Mbps Remote Users 128 Protocols P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output HDMI/VGA Output HDMI:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzRecording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Synchronous Playback 8-ch Corridor Mode Screen 3/4/5/7/9 Decoding Decoding format Ultra 265/H.265/H.264 Liveview/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 1x8MP@30,1 x 6MP@30,1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30 Hard Disk SATA 1 SATA interface Capacity up to 10TB for each disk External Interface Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface USB Interface Rear panel: 2 x USB2.0 Supported Standard IEEE 802.3at, IEEE 802.3af External Interface Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface Max Power Max 30W for single port
Max 75W in totalSupported Standard IEEE 802.3at, IEEE 802.3af General Power Supply 48V DC
Power Consumption: ≤9 W (without HDD)Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H) 260mm × 240mm × 46mm (10.2"×9.4"×1.8") Weight (without HDD) 1.1kg (2.43 lb)
