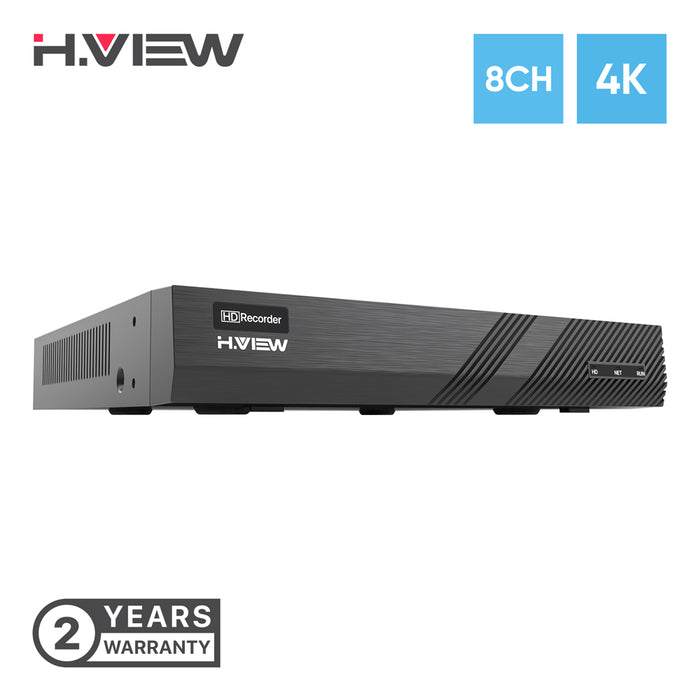

H.VIEW 8CH 4K PoE NVR, Support up to 8x4K IP Cameras (HDD Not Included)

Save £14.00 Save £14.00
Original price £169.99
Original price £169.99 - Original price £169.99
Original price £169.99
Current price £155.99
£155.99 - £155.99
Current price £155.99
  • Description
  • Specs
  • Downloads
  •

    Support 4K Ultra HD

    Featuring 8CH Recording, Both Video and Audio, Playback & Live View in Up to 4K Resolution (3840×2160) @ Real-Time 30fps.

    24/7 Continuous Recording

    If you want 24/7 video recording or if you have multiple IP cameras to manage, this NVR is your best choice.
    · Support all cameras recording at the same time (up to 8 cameras).
    · If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.

    HEVC / H.265 Encoding

    In comparison toH.264, H.265 saves 50% hard drive space under same resolution, can also offerssame level of video quality at 50% bandwidth as H.264 need.

    Remote Viewing, Anytime, from Anywhere

    No matter where you are, you can remotely access the NVR to see live streaming and stay connected.

    Motion Detection-Rich Alerts

    When any camera detects motion, it can also email and push you and trigger the recording. In this way, you can get real-time notification when an intrusion occurs.

    Set Motion Detection Schedule for NVR

    The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.

    Compatible with all H.VIEW IP Cameras & Majority of POE Cameras

    This NVR Can work with all H.VIEW POE Cameras. Completely Plug and Play. Save installation costs by installing system by yourself. It can also work with other cameras of other brands.

    Simultaneous Multi-Channel Recording and Playback

    Simultaneously playback 8 Channels at 1080P resolution, different colour marks different recordings

    Plug-and-play installation via PoE

    Power over Ethernet means the IP cameras connect to with a single cable that transmits both data and power. No power adapter is required, lower risk of electric leakage and easy to set up.

    NVR Specifications

    What's in the box?

  • NVR Specifications

    Model NVR3108-8P
    Video/Audio Input
    IP Video Input 8-ch
    Network
    Incoming Bandwidth 50Mbps
    Outgoing Bandwidth 40Mbps
    Remote Users 128
    Protocols P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    HDMI/VGA Output HDMI:
    1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    VGA:
    1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Synchronous Playback 8-ch
    Corridor Mode Screen 3/4/5/7/9
    Decoding
    Decoding format Ultra 265/H.265/H.264
    Liveview/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Capability 1x8MP@30,1 x 6MP@30,1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30
    Hard Disk
    SATA 1 SATA interface
    Capacity up to 10TB for each disk
    External Interface
    Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
    USB Interface Rear panel: 2 x USB2.0
    Supported Standard IEEE 802.3at, IEEE 802.3af
    External Interface
    Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface
    Max Power Max 30W for single port
    Max 75W in total
    Supported Standard IEEE 802.3at, IEEE 802.3af
    General
    Power Supply 48V DC
    Power Consumption: ≤9 W (without HDD)
    Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
    Dimensions (W×D×H) 260mm × 240mm × 46mm (10.2"×9.4"×1.8")
    Weight (without HDD) 1.1kg (2.43 lb)



Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Terence Taylor
NVR

I plugged in the NVR as is per instructions plugged the camera in to port no.1
connected the NVR to the tv via HDMI cable followed the on screen instruction's
wow the camera was working straight away excellent picture it was better when I connected it to my computer monitor .I have now fitted a 2tb hard drive so I can record, the quality of the recording was also excellent I couldn't tell the difference from the live view. I will be buying another camera later on ,so all you ned to do is just plug it into the next port no.2 and it will be there.
Thank you H View for making it so easy to use.
