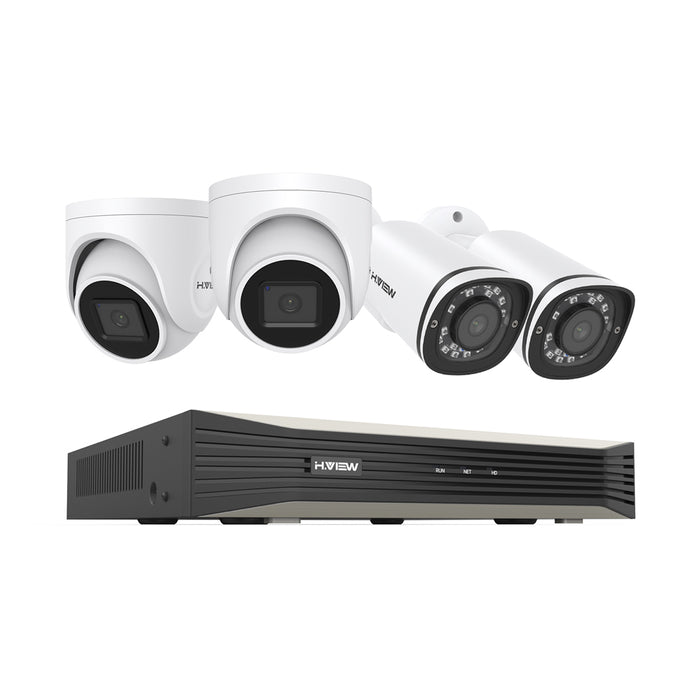

H.265 5MP PoE Security Camera System, 4Pcs Smart 5MP Wired PoE IP Cameras with AI Detection, Audio Record Cameras, 5MP 8CH NVR, Support up to 6TB HDD for 24-7 Recording(HDD not Included)
- Description
- Specs
- Downloads
-
Super HD 5-Megapixel High Resolution
H.VIEW NVR security system records real-time videos on all channels at 5MP high resolution (2592×1944), much clearer than 1080p and 720p. All cameras provide incredibly bright and sharp images in real color, which enables you to see all objects very clearly.
H.265 Encoding Technology
H.265 Recording Compression Record 40-50% more video than H.264 on the same hard drive. H.265 can improve network performance for remote viewing as well.H.265 technology compresses your video without sacrificing any of the UltraHD video quality.
Up to 30m Night Vision
With the latest EXIR Array LEDs, the cameras bring up to 100ft/30m night vision in super clarity, as they eliminate the dark corners and the spotlight effect you see in other cameras. No matter if it’s day or night, your properties will get reliable 24/7 protection.
PoE – Easy Setup, Even for a Beginner
A real plug and play security system! It features PoE (Power over Ethernet), with a single network cable connecting each IP camera to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can’t be simpler for DIY enthusiasts and beginners.
24/7 Monitoring and Recording, NVR Never Sleeps
This 8CH 5MP PoE NVR security camera system supports simultaneous live feed and 24/7 recording for all cameras. the security IP camera can not only record just motion clips, but also every single minute of what happened. When something abnormal is detected, you’ll get notified instantly. You will never miss anything.
Powerful PC Computer Remote Managemen
Real-time video browsing, video playback, video download, monitoring point management, PTZ control, video storage management, alarm, patrol and other rich video monitoring business functions will all be realized through the computer Guard Station video management software. Multiple NVR recorders can be added and managed at the same time.
Remote Viewing, Anytime, from Anywhere
Remotely view the IP Camera via free H.VIEW App on your mobile device, free H.VIEW Client on your computer, web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.)
Smart Motion Alerts
This 5MP security System can detect motion and notify you instantly through push notifications, emails alerts . You can personalize all kinds of alerts to fit your needs.
Set Motion Detection Schedule for NVR
The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.
Listen to what's happening around
Built-in microphone let you hear the sound around the camera,records what people say, make it authentic with sound video recording.
Ready for Anywhere, Indoor and Outdoor
Outdoor and indoor ip camera has a solid aluminum body and housing, with an IP66 waterproof rating. So you can feel free to install it outdoor, like in your garage, backyard, or anywhere else. It can stand harsh weather conditions, including rain, snow, intense cold and heat.
PoE IP Camera Parameters
8CH POE NVR Specification
What's in the box?
-
NVR Specifications
Model NVR3108-8P Video/Audio Input IP Video Input 8-ch Network Incoming Bandwidth 50Mbps Outgoing Bandwidth 40Mbps Remote Users 128 Protocols P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output HDMI/VGA Output HDMI:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzRecording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Synchronous Playback 8-ch Corridor Mode Screen 3/4/5/7/9 Decoding Decoding format Ultra 265/H.265/H.264 Liveview/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 1x8MP@30,1 x 6MP@30,1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30 Hard Disk SATA 1 SATA interface Capacity up to 10TB for each disk External Interface Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface USB Interface Rear panel: 2 x USB2.0 Supported Standard IEEE 802.3at, IEEE 802.3af External Interface Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface Max Power Max 30W for single port
Max 75W in totalSupported Standard IEEE 802.3at, IEEE 802.3af General Power Supply 48V DC
Power Consumption: ≤9 W (without HDD)Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H) 260mm × 240mm × 46mm (10.2"×9.4"×1.8") Weight (without HDD) 1.1kg (2.43 lb) Camera Specifications
Model HV-E800DA Image Sensor 8 Million Pixel, Progressive Scan CMOS Smart Features Motion Detection, Intrusion Detection， Human Body Detection Lens 2.8mm@F1.4 95° of horizontal coverage; Camera Streams Main Stream: up to 8MP (3840×2160): Max. 20 fps,
Sub Stream: up to 720p (1280x70): Max. 20 fps;
Mobile Data-Sensitive Stream: up to D1 (720×576): Max. 20 fpsMax. Image Resolution 3840×2160; 8 Megapixel Frame Rate 8MP (3840×2160)/15 fps; 6MP(3042× 2048 )/20fps; 5MP (2048×1520)/20 fps; 4MP(2592*1520)/20fps; 1080P (1920*1080)/20 fps Day & Night IR-cut filter with auto switch (ICR) Wide Dynamic Range Digital WDR Waterproof Rated
IP66 Rated
Decoding format H.265/H.264 Liveview/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP Interoperability ONVIF (Profile S, Profile T) Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface Power Supply 12 V DC±25%, PoE (IEEE802.3 af/at) Supported Standard IEEE 802.3at, IEEE 802.3af Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H) 93mm×93mm×93mm(3.66"×3.66"×3.66") Weight 0.65kg
